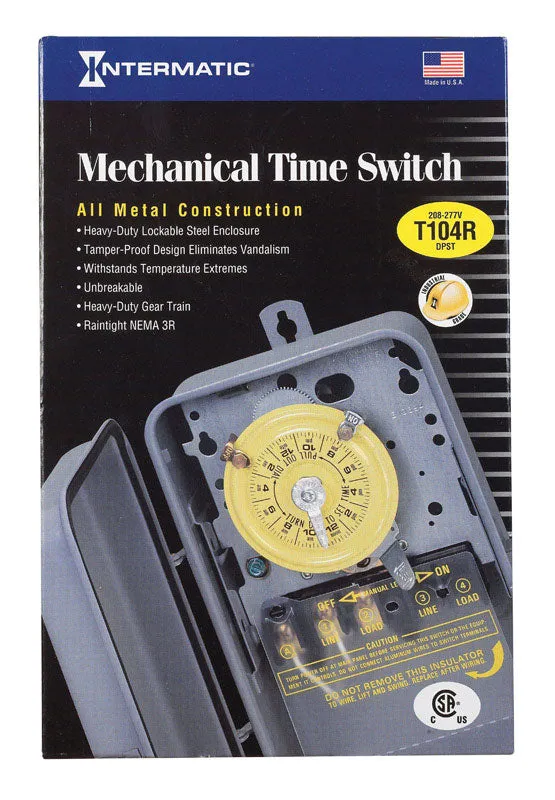

The T100 series mechanical time switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 amp per pole and allow for up to 12 On/Off operations per day. Use for lightning, signs, filters, electric fences, fans, conveyors, pool heaters, blowers and pump.
- Brand Name: Intermatic
- Indoor or Outdoor: Indoor and Outdoor
- Product Type: Mechanical Timer Switch
- Volts: 277 V
- Color: Gray
- Watts: 3 W
- Packaging Type: Boxed
- Application: Interior Lighting, Exterior Lighting, Electric Pumps, Electric Motor Control, Various Other Electrical Loads
- Programmable: Yes
- Number in Package: 1 pk
- Cycles: 24 hr
- UL Listed: Yes
- CSA Listed: Yes
- Warranty: 1 year
- Operation Temperature: -40 degree F to 130 degree F
- Height: 10 1/8 in.
- Inductive Range: 40 A, 120-277 VAC, 60 Hz
- Maximum On/Off Operations: 12
- Minimum On/Off Times: 1 hour
- Number of Circuits: 1
- Pilot Duty Range: 1000 VA, 120-277 VAC, 60 Hz
- Tungsten Range: 40 A, 120-277 VAC, 60 Hz
- Wiring Option: Terminal
- Electronic Ballast: 16 A
- Resistive Range: 40 A, 120-480 VAC, 60 Hz
- Switch Type: DPST
- Knockout Dimensions Back/Side: (1) combination 1/2 in. - 3/4 in.
- Wire Size Maximum: No.8 AWG
- Wire Size Minimum: No.14 AWG
- Input Voltage Range: 208-277 VAC, 60 Hz
- Inductive: 40 A, 277 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
- Width: 6 1/2 in.
- Depth: 3 5/8 in.
- Enclosure Type: Indoor/outdoor Type 3R Metal
- Knockout Dimensions Bottom: (2) combination 1/2 in. - 3/4 in.
- Motor: 2 HP, 24 FLA at 120 VAC, 60 Hz;5 HP, 28 FLA at 240 VAC, 60 Hz
